  • OPTImill MH 22V Vario
    OPTImill MH 22V Vario
    OPTImill MH 22V Vario

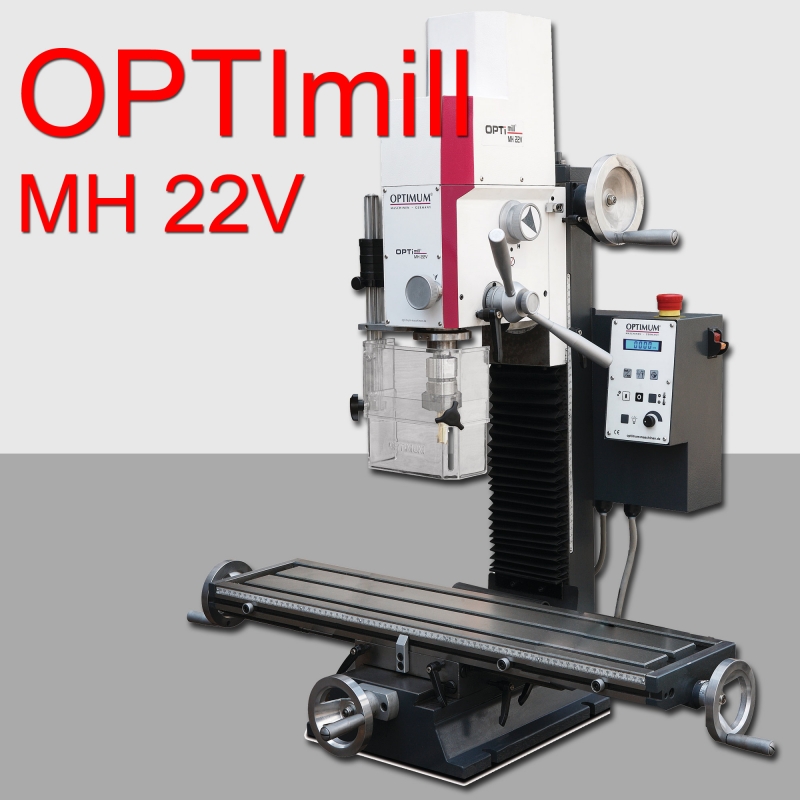

  • Optimill MH-22V Vario small drilling machine with electronically infinitely variable drive for the model builder

    Technical specifications:

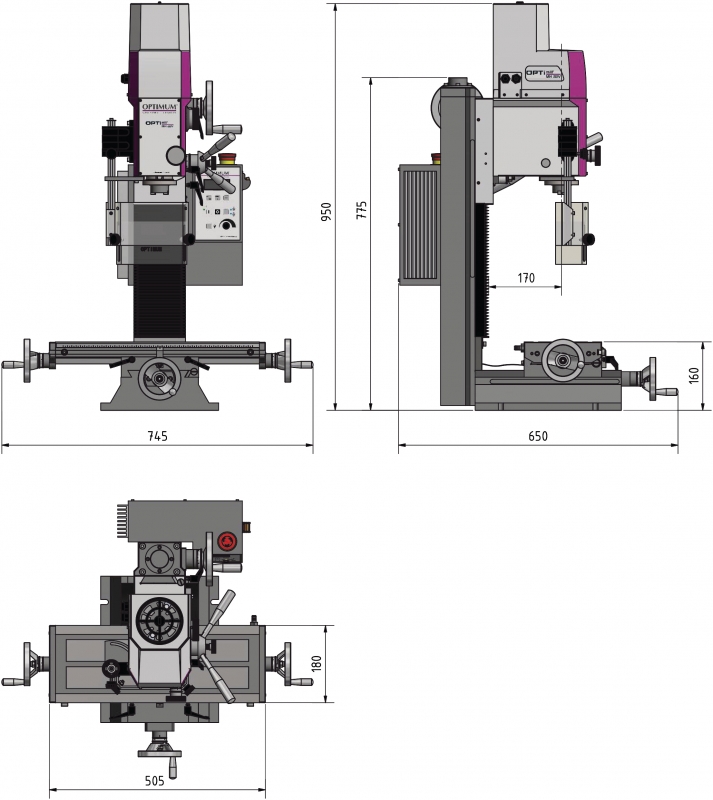

    Length (product) 745 mm
    Width / depth (product) 650 mm
    Height (product) 950 mm
    Power drive motor 1.1 kW
    Connection voltage 230 V
    Phase (s) 1 Ph
    Current type
    Power frequency 50 Hz
    Knife head size max. 52 mm
    Shank cutter size max. 20 mm
    Vertical spur projection 185 mm
    Vertical spindle spindle adapter BT 20
    Vertical spindle Speed ​​range 90 - 3000 min-1
    Vertical spindle Number of speed ranges 2
    Horizontal milling length 700 mm
    Horizontal milling width 180 mm
    Distance vertical spindle - horizontal milling min. 370 mm
    Distance vertical spindle - horizontal milling max. 370 mm
    Horizontal milling table T-grooves Size 12 mm
    Horizontal milling table T-slot spacing 63 mm
    Travel distance X-axis manual 480 mm
    Travel Y-axis manually 175 mm
    Travel Z-axis manually 370 mm
    Drilling capacity steel (S235JR) 18 mm
    Continuous drilling capacity steel (S235JR) 16 mm
    Vertical spindle Turning range milling head Z - X level 90 degrees
    Vertical spindle Pinol diameter 60 mm
    Vertical spindle Pinol stroke 50 mm
    Weight (net) 116 kg

    Robust drilling-milling machine with electronically continuously variable drive
    Feed spindles can be adjusted without play by adjustable spindle nuts
    Sturdy dovetail guide, precision ground and scraped with adjustable keel bars
    EMC filter class B (use in private households)
    All guides are ground and visually scaled (oil bags for lubrication)
    Precisely processed
    Double row angular contact ball bearings in the axes, play-free adjustable
    Safety power supply in 24 volt version
    Bellows as guide protection
    Right / left run Drill milling head can be tilted by ± 900, for milling and drilling work in any angular position
    Machine lamp
    Height-adjustable protection screen with microswitch, against roving chips and parts, for the greatest possible protection of the user
    Easy to read speed display and depth display, selectable mm / inch fine feed


    Equipment details

    Control electronics
    Integrated relay control
    engine
    Two-stage transmission for a powerful transmission of engine power
    Powerful DC motor with permanent current monitoring
    Z-column and X-axis
    Prepared groove for retrofitting the magnetic tapes

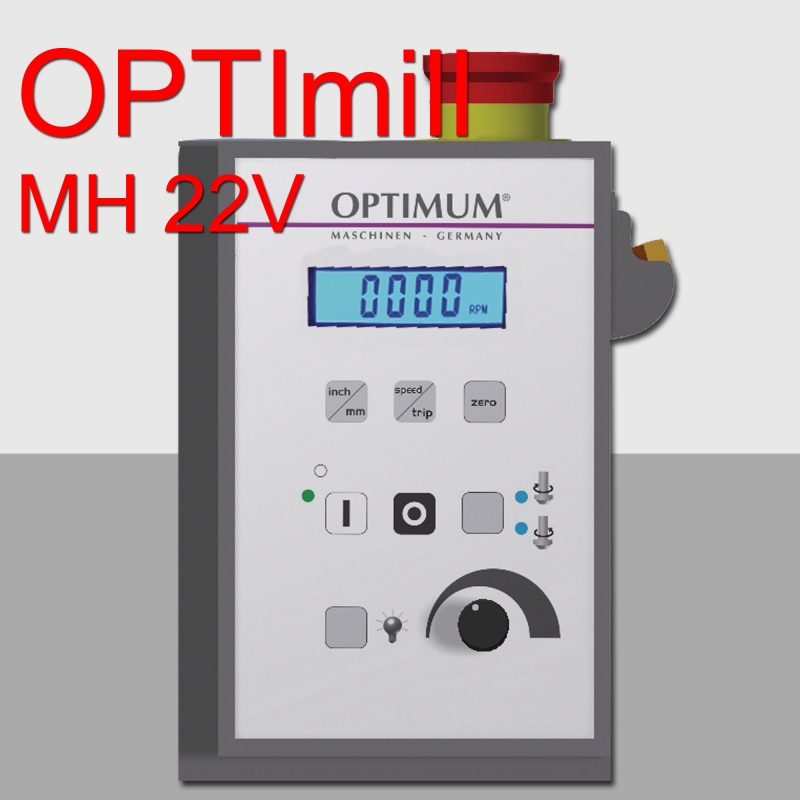

    Control panel
    User-friendly keyboard keyboard
    Easy-to-read digital speed display
    In summary
    Emergency stop switch
    Tapered roller bearing
    High running accuracy ≤ 0.015 mm measured in the quill
    pillar
    Can be moved on both sides by 30 mm
    When the head is tilted, longer travel distances and centered machining of the workpiece is possible
    Rear with bore
    Easy oiling of the trapezoid spindle or greases of the ball circulation spindles
    Cross table
    Solid
    Precise surface treatment
    With T-slots
    Adjustable Keilleists
    Adjustable by 3 handwheels
    Adjustable end stops
    Y axis
    Prepared groove for retrofitting the magnetic tapes



    Possible accessories

    Universal substructure - Dimensions L x W x H: 420 x 340 x 800 mm
    Item No. 3353000
    Chip tray - dimensions L x W x H: 720 x 470 x 30 mm
    Item No. 3352999
    Digital position display DRO 5
    Item No. 3383975
    Factory assembly DRO 5
    Item No. 9000420

    Kegeldorn MK 2 / B16
    - Operating tool

    Data can still change!
