The optimum OPTIdrill dh 55G with 2.2 kw and MK4 spindle absorption at a nominal size of 850 x 1,060 x 2,500 mm-heavy column drilling machines with gearbox.
- Heavy, solid cast version
- Dirt and Wassserresistente, easy to clean membrane keyboard
- 24v DC Electronics
- Drill Depth Stop
- Electric Pinolenvorschub
- Thread Cutting device
- Machine lamp integrated in drill head
- Two-stage drive motor
- Extremely stable, thick-walled Gusssäule for high power absorption
- Coolant device and external coolant tank can be removed for easy and complete emptying
- Solid base plate with parallel t-slots, precise surface processing
Technical data of Optimum OPTIdrill DH 55G
Electrical Connection 400 V/3 ph ~ 50 Hz
Engine power 2.2/2.8 kw
Drilling capacity Steel (S235JR) Ø 55 mm
Thread cutting Steel (S235JR) m 42
Quill Stroke 200 mm
Spindle Intake Mk 4
Projection 405 mm
Automatic Pinolenvorschub 3 steps/0.1-0.2 mm/u
Clutch mechanical spindle speeds 45-2,000 min-1
Number of stages 16 levels
Working surface table length x Width 600 x 600 mm
T-Slot size 18 mm

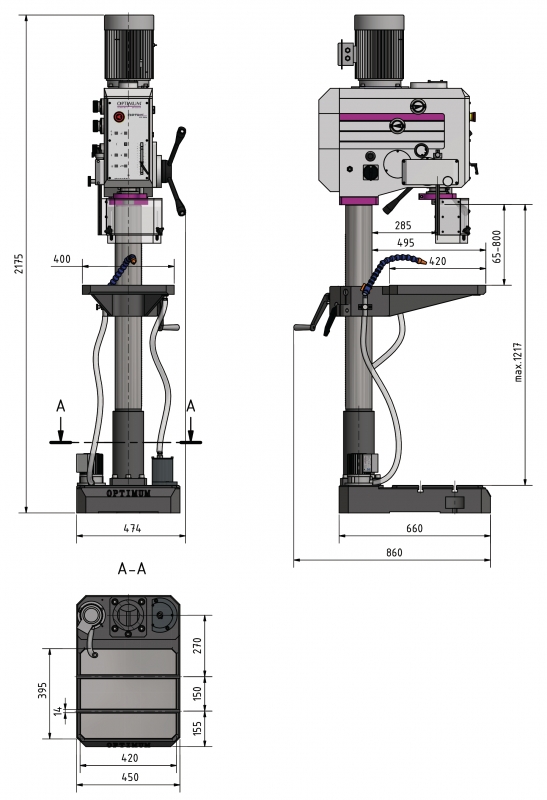

Dimensions L x W x H 850 x 1,060 x 2.500 mm
Weight 930 kg
Scope of delivery:
> Quick clamping Chuck 1-16 mm
> Morse Cone Mk 4/b 16
